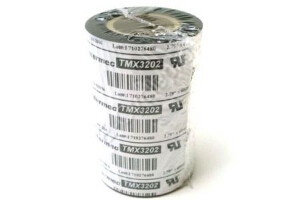

ThermaMAX TMX3200 Ultra-Durable Thermal Transfer Printer Ribbon

ThermaMAX TMX3202 Ultra-Durable Thermal Transfer Ribbon

When paired with compatible labels, Honeywell’s ThermaMAX TMX3202 ribbon generates extremely durable images that readily endure outdoor exposure to rain, snow, and ultraviolet light for three years or more. Its highly abrasion-resistant printed images survive extremely challenging environments where labels are subject to heavy wear. The ThermaMAX TMX3202 ribbon is ideally suited for label materials such as:

• Duratran II Gloss Polyester Label
• Duratran II Gloss Kapton Label

Better Together
Honeywell media solutions have added advantages when paired with Honeywell printers:

• Co-engineered printers and media ensure consistent print quality and performance.
• Thermal transfer printability allows on-demand generation of durable labels, eliminating high cost and inventory obsolescence associated with preprinting.
• When Honeywell media is used exclusively with Honeywell printers, the Free Printhead Replacement Program offers significant cost savings.

Applications:

• Automotive components
• Aerospace components
• Electronics labeling (UL recognized nameplate)
• Appliance labeling (UL recognized nameplate)
• Medical devices
• Medical specimens (vials, slides, etc.)
• Lawn and garden equipment
• Building products
• Oil and gas industries
• Drum labels
• Valuable asset tracking
• Industrial bins

Ribbon Construction:

• Total Ribbon Thickness: 7.2 to 8.8 um
• Ribbon Film Thickness: 4.4 to 5.4 um
• Ribbon Film Type: Polyethylene terephthalate

Properties:

• Ink Color: Black
• Ink Pigment: Carbon black
• Image Density (4ips/4420): 1.4 OD min.
• Flaking Resistance: No flaking
• Film Break Strength (MD): 29 kg/mm2 min.
• Film Shrinkage: 2% max at 150° C/30 min

Performance Attributes:

• IPA Crock (2 ips/4420): B at 25 cycles/2.95# arm
• Scratch (2 ips/4420): B at 200 cycles/2.95# arm
• Ambient Operating Temperature and RH: 5 to 35°C, 5 to 70% RH
• Print Quality (4ips/PM4i): ANSI A on 10 mil ladder

Printers:

• Honeywell labels and tags are engineered to produce optimum print quality when used in Honeywell printers with the proper ribbon/material combination.
• Print speed (4 ips max on 4420): Format and material dependent

Storage Conditions:

• Temperature: 41°F to 95°F OR 5 to 35°C
• Relative Humidity: 20 to 85% RH
• Shelf Life: 12 months

Conformance and Certification:

• FDA Indirect Food Additive: No
• CONEG Heavy Metals Legislation: Yes
• UL Recognized: Yes
