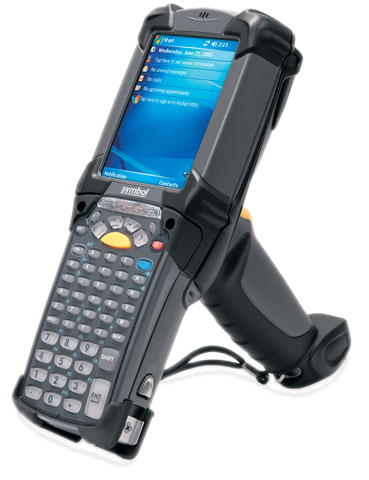

Zebra MC9090-GF0HBEGA2WR (Device & Battery ONLY) Handheld Scanner
Model #: MC9090-GF0HBEGA2WR (Device & Battery ONLY)Symbol MC9090-G - (Gun-grip, Wi-Fi, Bluetooth, Laser Scanner, Windows CE 5.0, Color Screen, 64/64MB, 53 key, and standard battery. Cables and charging cradle not included.)
Product Description:
The MC9090-G mobile computer maximizes mobile worker productivity by providing a flexible, always-on connection to the network. The MC9090-G provides the most advanced mobile operating systems available with a choice of a familiar Windows environment or an application-specific environment. Additionally, it supports a variety of multimedia applications and its Intel 624 MHz enhanced memory ensures retention of mission-critical data. The Bluetooth option allows users to wirelessly synchronize and print. The MC9090-G's rugged construction, which passed stringent drop and tumble tests, dramatically reduces repair and downtime costs while its 3.8" screen makes it easy to read. The pistol grip allows for comfortable and efficient use in a variety of applications such as manufacturing, delivery and retail floors.
Technical Information
- Scanner Range: Standard Range
- Connectivity Technology: Wireless
- Light Source: Laser
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
- Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
- Barcode Symbology Supported:
- Codabar
- Code 39
- Code 93
- Code 128
- Discrete 2 of 5
- Interleaved 2 of 5
- MSI
- RSS
- UCC/EAN 128
- UPC/EAN
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC9090-G
- Product Name: MC9090-G Mobile Computer
Physical Characteristics
- Height: 7.6"
- Width: 3.6"
- Length: 9.1"
- Weight (Approximate): 1.56 lb
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- MC9090-G Mobile Computer
- Battery
- Hand Strap
- Stylus
- BT Explorer
- Regulatory Guide
- Quick Start Guide
- MC9090-G Mobile Computer
- Battery
- Hand Strap
- Stylus
- BT Explorer
- Regulatory Guide
- Quick Start Guide
- Certifications & Standards:
- Electrical Safety:
- Certified to UL60950-1
- CSA C22.2 No. 60950-1
- EN60950-1
- IEC 60950-1
- EMI/RFI:
- FFC Part2(SAR)
- FCC Part 15
- RSS210
- EN 300 328
- EN 301 487
- EN55022
- EN55024
- Additional Information: Region: Worldwide
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Antenna Form Factor: Internal
- Wireless LAN Standard: IEEE 802.11a/b/g
- Wireless Security:
- AES
- LEAP
- PEAP (MS-CHAP v2)
- PEAP-TLS
- TKIP
- TLS
- TTLS (CHAP)
- TTLS (MS-CHAP)
- TTLS (MS-CHAP v2)
- TTLS-MD5
- TTLS-PAP
- WEP 40 bit
- WEP 128 bit
Memory
- Flash Memory: 64 MB
- Standard Memory: 64 MB
- Memory Card Slot: Yes
- Memory Card Supported:
- Secure Digital (SD) Card
- MultiMediaCard (MMC)
Display & Graphics
- Screen Mode: QVGA
- Screen Size: 3.8"
- Display Color: Color
- Screen Resolution: 320 x 240
Battery Information
- Battery Capacity: 2200 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Processor & Chipset
- Processor Manufacturer: Intel
- Processor Speed: 624 MHz
- Processor Type: XScale
Keyboard/Keypad
- Keyboard Type: Alphanumeric
- Number of Keys: 53
Software
- Operating System: Windows CE 5.0
Touchscreen Information
- Touchscreen: Yes
