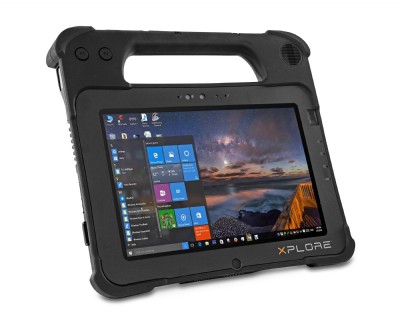

Zebra XPAD L10 Tablet
Model #: XPAD L10While the XPAD L10 Rugged Tablet computer may be best recognized for its ergonomic rigid handle, it is also known for its field-proven, industrial-grade durability – especially among those in field service and industrial sectors who spend their days walking and working. The optional barcode reader is built into the handle to expedite data input and verification tasks.
Product Description:
XPAD L10 Rugged Tablet
RIGID HANDLE WITH BARCODE READER
While the XPAD L10 Rugged Tablet computer may be best recognized for its ergonomic rigid handle, it is also known for its field-proven, industrial-grade durability – especially among those in field service and industrial sectors who spend their days walking and working. The optional barcode reader is built into the handle to expedite data input and verification tasks.
INDUSTRY USE |
|||
![]() |
Transportation | ![]() |
Manufacturing |
![]() |
Field Mobility | ![]() |
Warehouse Management |
DIMENSIONS AND WEIGHT
11” x 10” x .88” (280.8 mm x 255.9 mm x 22 mm)
3.1 lbs (1.4 kg)
DISPLAY
10.1” 2K Resolution Display
Capacitive 10-Point Touch or Active Digitizer
Glove and Wet Touch
Outdoor Viewable and Night vision mode
Corning® Gorilla® Glass 3 Damage Protection
PROCESSOR AND OS
Windows 10 Pro, 64 bit
8th Gen. Intel Core i7 vPro, i5 VPro or i5 CPUs or Intel PenZum CPU
Android 8.1 (Oreo)
Qualcomm Snapdragon 660
RUGGED SPECS
MIL-STD-810G
MIL-STD-461F
IP65
C1D2
ATEX (See L10 ATEX Spec Sheet for details)
CONNECTIVITY
NFC, GNSS and 4G LTE technologies with dual SIM (optional with Windows), 802.11ac Wi-Fi, Bluetooth®
BATTERY
Standard Battery, 36WHr, up to 10 hr run-time
Extended Life Battery, 98WHr, up to 27 hr run-time
Standard Battery approximate charge time: 2.75 hr
Standard Bridge battery for Hot Swapping
L10 WINDOWS RUGGED TABLETS
THE ULTIMATE XPAD, XBOOK 2-IN-1 AND XSLATE 10.1 INCH ‘GO-ANYWHERE’ TABLETS
Put the power of mobile data in the hands of workers in your most demanding environments with Zebra’s L10 WIndows Rugged Tablet family. Three models meet the needs of workers out in the field in energy, mining, utilities, telecommunications, construction, public safety and government — as well as in warehouses and manufacturing plants. The rugged go-anywhere design is at home indoors, outside, in freezers, sub-zero cold and extreme heat, in forklifts, trucks and other vehicles — and even in bright sunshine. An advanced platform delivers blazing fast performance on all your apps, a battery that provides full shift or around-the-clock power with a single charge, plus the fastest wireless connections — WiFi, Bluetooth, cellular, GPS and NFC. All the right data capture options increase workforce productivity. Customize your L10 tablets with enterprise accessories that simplify everyday use. The L10 Series — the ultimate Windows rugged tablets designed for the workplace.
THE ULTIMATE IN RUGGED VERSATILITY
Meet the needs of practically any job with three models
The XBOOK L10 2-in-1 rugged tablet offers the ultimate in flexibility — use it as a laptop replacement with the fully-functional keyboard for heavy data entry, remove the keyboard for easy use while standing or walking, or mount in any vehicle with a companion vehicle dock — from forklifts in a warehouse to delivery and first responder vehicles.
For workers who spend their day on their feet, an integrated rigid handle makes the XPAD L10 easy to carry. And the XSLATE L10 is the smallest and lightest model for workers who need a traditional tablet design. No matter which model you choose, you get the same great rugged design, CPU platform, common user experience and consistent support for all of your applications.
Customize with mix-and-match accessories
No matter what models you choose, you get one enterprise-class accessory family that works with them all. Purchasing and managing accessories is easier. And you can simplify everyday use for your workers with a choice of desktop, industrial and vehicle docks; a carrying case; a shoulder strap; a kickstand and more.
Add ports and additional data capture options
Need more ports for easy connection to additional hardware? No problem — just add a True RS232 serial or HDMI-in port. Want to read barcodes to streamline and ensure accurate barcode capture? Add an enterprise-class scanner to the XPAD. Need more security options? Add a Common Access Card (CAC) or Smart Card reader. And if your organization is utilizing RFID, you can add a UHF RFID reader.
Dimensions | XSLATE: 11.0 in. L x 7.7 in. W x 0.88 in. D 280.8 mm L x 195.2 W mm x 22 mm D XPAD: 11.0 in. L x 10.0 in. W x 0.88 in. D 280.8 mm L x 255.9 W mm x 22 mm D XBOOK: 11.0 in. L x 8.3 in. W x 2.36 in. D 280.8 mm L x 210.8 W mm x 60 mm D |
Weight | XSLATE: 2.8 lbs/1.3 kg2 XPAD: 3.1 lbs/1.4 kg2 XBOOK: 4.63 lbs/2.1 kg2 |
Frame | Magnesium alloy internal frame with external elastomer corner bumpers |
Display | 10.1 in. 2K resolution display WUXGA 1920 x 1200 (16:10) - Standard 500 Nit capacitive - View Anywhere® 1000 Nit capacitive - View Anywhere 1000 Nit with active Wacom® digitizer Corning® Gorilla® Glass 3 Capacitive 10-point touch Contrast ratio = 800 : 1 Wide viewing angle ±89° Standard user replaceable anti-glare screen protector — 3H hardness Auto-sensing standard, glove and wet touch Night vision mode supported on Active View Anywhere Display only |
Graphics | N4200 CPU - Intel® UHD Graphics 505 Core i5 & i7 CPUs - Intel® UHD Graphics 620 |
Battery Life & Power | Standard battery: up to 10 hours3 Extended battery: up to 27 hours3 Battery charge time: - Standard battery: 2.75 hours with system off4 - Extended battery: 3.25 hours with system off4 Standard bridge battery (1 minute swap time) - Hot swap battery feature comes standard Input Voltage: 12-20V, AC Adapter: 19V |
Ports/Connectivity | Docking connector (2) USB 3.0 ports USB Type-C port (USB 2.0, USB 3.0, Display Port out) 3.5 mm audio output (stereo out, mono in) RJ-45 ethernet port Dual Nano SIM (4FF) Micro-SDXC |
Expansion Slot | Micro-SDXC |
Integrated Options | NFC Optional 1D/2D barcode reader (XPAD only) Optional True RS232 serial, or Optional HDMI-In, or Optional CAC / Smart Card reader, or Optional UHF RFID reader (AEI) |
Rugged Keyboard | Included with XBOOK: backlit; IP65; 3.2 ft./1 m drop specification; kick strap/stand (rugged keyboard is optional for the XSLATE and XPAD) |
Security | Integrated fingerprint reader Trusted Platform Module (TPM) 2.0 Optional CAC / Smart Card reader |
Status Indicators | System status, battery status, camera active, SSD activity |
Audio | Intel High Definition audio Realtek® HD Codec RealTek noise cancellation Multi-directional array microphone - 2 microphones (2 front facing array mic) XPAD: 1 front facing speaker XSLATE/XBOOK: 1 rear facing speaker |
Performance Characteristics
Operating System | Windows® 10 Pro 64-bit |
Processor |
8th Generation Intel® Core™ i7 vPro™ processor – 8th Generation Intel® Core™ i5 vPro™ processor – 8th Generation Intel® Core™ i5 processor – 8250U; Intel® Pentium® processor N4200; (LPDDR4, |
Memory | 4 GB (Pentium N4200 only) 8 GB (Pentium N4200 & Core i5 8250U only) 16 GB (Core i5 vPro 8350U & Core i7 vPro 8650U only) |
Storage Options |
N4200 CPU: Core i5 & i7 CPUs: |
User Environment
Operating Temperature | -4° F to 140° F/-20° C to 60° C; MIL-STD-810G |
Storage Temperature | -22° F to 158° F/-30° C to 70° C; MIL-STD-810G |
Thermal Shock | -22° F to 158° F/-30° C to 70° C within five (5) minutes, non-operating; MIL-STD-810G |
Drop Specification | MIL-STD-810G: 6 ft./1.83 m drops to plywood over concrete 4 ft. drops to concrete |
Sealing | IP65 |
Hazardous Environments | C1D2 (Class 1 Division 2) for hazardous locations1 |
Vibration | Minimum integrity non-operating, composite wheel operating; MIL-STD-810G |
Shock | 40G operating; MIL-STD-810G |
Humidity | 3% to 95% non-condensing, -22° F to 140° F/-30°C to 60°C, 5 cycles of 48Hr; MIL-STD-810G |
Water Proofing | Method 506.5 - Procedure I, wind speed 40 mph, 4 inches per hour, 4 sides; MIL-STD-810G |
Blowing Sand | 20M/S, rate 1.1g/m3 (+/-.3g) at high temperature of 140° F/60° C; MIL-STD-810G |
Blowing Dust | Velocity 8.9M/s dust concentration 3.9 g/m3 at high temperature of 140 °F/60° C; MIL-STD-810G |
Fluid Contamination | 50/50 solution of water and bleach, 50/50 solution of water and hydrogen peroxide, diesel fuel, mineral based oil, Lysol disinfectant, denatured alcohol, isopropyl alcohol; MIL-STD-810G |
Altitude | Operating: 50,000 ft./15,240 m; MIL-STD-810G |
Camera |
13 MP rear camera; 2 MP front camera |
NFC |
Optional |
RFID | Optional UHF RFID Reader (AEI) |
Barcode Scanner | Optional on XPAD only: SE4720 1D/2D imager5 |
Wireless WAN/GPS Data (Cellular)
Radio Frequency Bands |
Optional internal wireless (one expansion slot with choice of: Optional Pass-Through antenna includes 5 ports for MIMO WWAN, MIMO WLAN and GPS |
FirstNet Ready Models | Sierra Wireless EM7511: LTE-Advanced with GNSS receiver (GPS, GLONASS, BeiDou, and Galileo satellite systems supported) |
Wireless LAN (WiFi)
Radio | Intel® Dual Band Wireless-AC 8265 Wi-Fi® plus Optional Pass-Through antenna includes 5 ports for MIMO WWAN, MIMO WLAN and GPS |
Wireless PAN (Bluetooth)
Bluetooth | Class 1, Bluetooth® 4.2 (EDR + BLE) |
Regulatory
Product Safety | UL/CSA 60950-1, 2nd Ed.; IEC/EN 60950-1; AS/NZS 60950-1, 2nd ED.; NOM 019; C1D2, ANSI/ISA 12.12.01-2013 (Hazardous Location) |
SAR | FCC OET 65 Supplement C; CAN/CSA RSS-102 Issue 5, Safety Code 6; EN 62311, EN 62209-2; EN62209-2:201 |
EMC | FCC Part 15 B, Class B; CAN/CSA ICES-003, Class B; EN55032, Class B; EN 301-489-1; EN 301-489-17; EN 301-489-24; EN 61000-3-2; EN 61000-3-3; EN55024; EN 303 413 |
Environment | California Proposition 65; Battery Charging Systems; RoHS 2 Directive 2011/65/EU; WEEE Directive 2012/19/EU; Battery Waste Directive 2013/56/EU; NMX -1-122-NYCE-2006 (Mexico Energy Consumption); Energy Star Compliant; EPEAT Silver |
Accessories
Vehicle dock; industrial dock; office dock; standard and extended batteries; kickstand with extended battery bracket; single bay battery charger; power adapters; companion keyboard; short and long digitizer and passive pens; combination kickstand and rotating hand strap; soft handle; shoulder strap; carry case; screen protectors; screen cleaning cloth |
Recommended Services
Zebra OneCare Essential and Select: Maximize Zebra device availability, device value and operational efficiency with these fully-featured support services that set the industry bar for support. Zebra Visibility Services — Asset Visibility Services (AVS) and VisibilityIQTM Foresight options on any Zebra OneCare support contract deliver the device management data needed to take device uptime, operational efficiency and return on investment to the next level. |
Footnotes
1. Requires a Hazardous Locations certified model. Many XSlate and XPad models are C1D2 certified, and some models are ATEX certified. 2. Weight represents approximate system weight measured with a 36WHr battery. Actual system weight may vary depending on configuration, component and manufacturing variability. 3. MobileMark 2014 performance testing software. Battery performance will vary by system configuration. Battery life and recharge estimates will vary based on system settings, applications, optional features, environmental conditions, battery conditioning and user preferences. 4. Approximate charging time. Validated charging from 5% to 90% with system on or system off. 5. Available Q4 2019. Specifications are subject to change without notice. |
